3ds Max Plugins
...
Workflow Plugins
MoJo

MoJo (UI) - Add Widgets.

8min

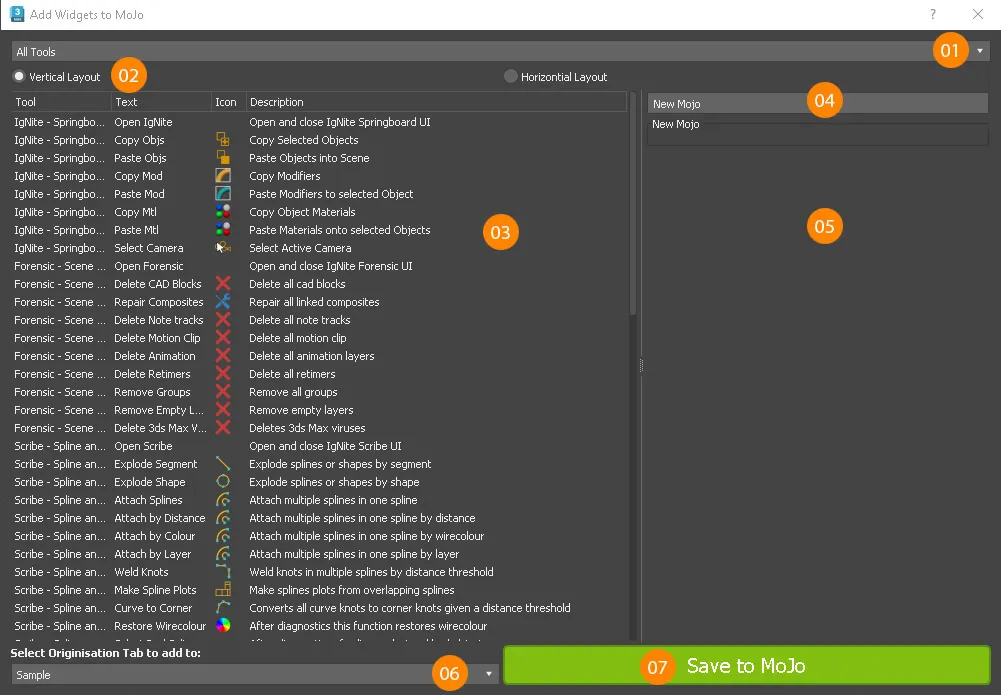

MoJo Widget Builder UI

Open MoJo by accessing it from the top SiNi dropdown menu.

Document image
īģŋ

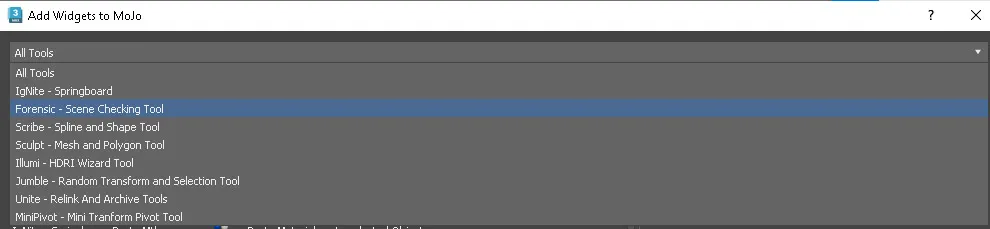

01. Drop Down Menu

Document image
īģŋ

Use the dropdown menu to isolate specific plugin tools to select from.

02. Layout Format

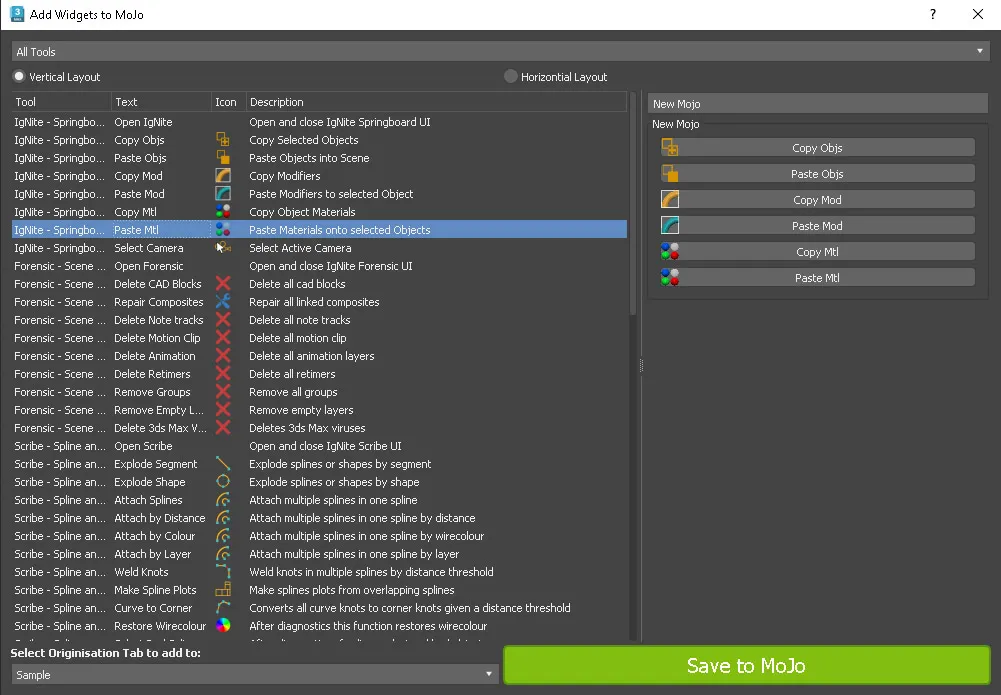

Widget Builder - Vertical Layout
Widget Builder - Vertical Layout
īģŋ

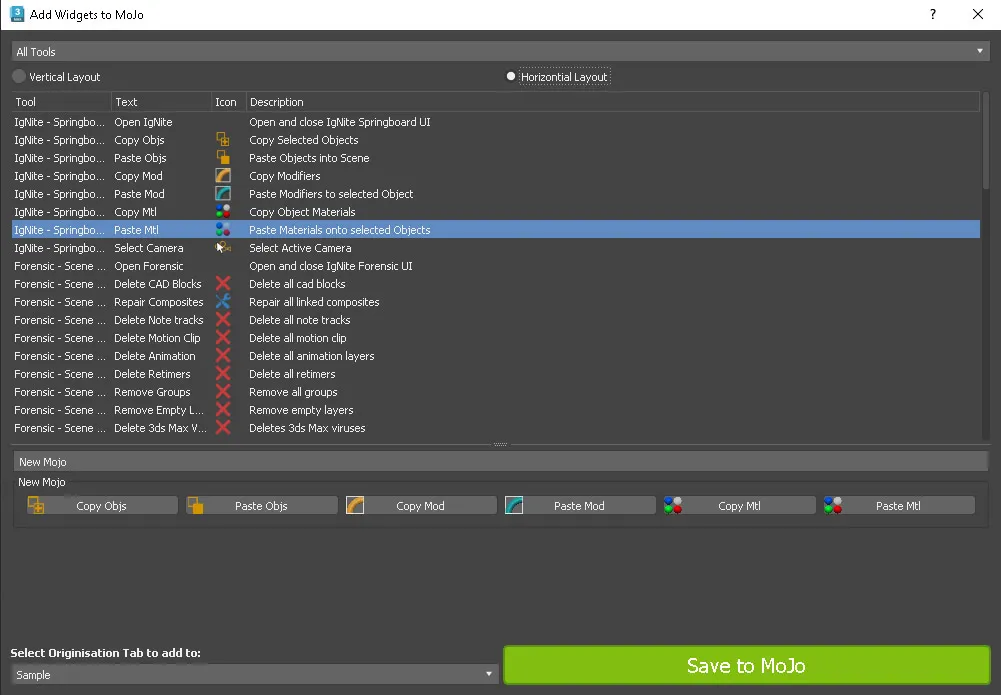

Widget Builder - Horizontal Layout
Widget Builder - Horizontal Layout
īģŋ

Sets out MoJo Widgets in a horizontal or vertical format.

The screenshots below show the resulting horizontal and vertical layouts in MoJo.

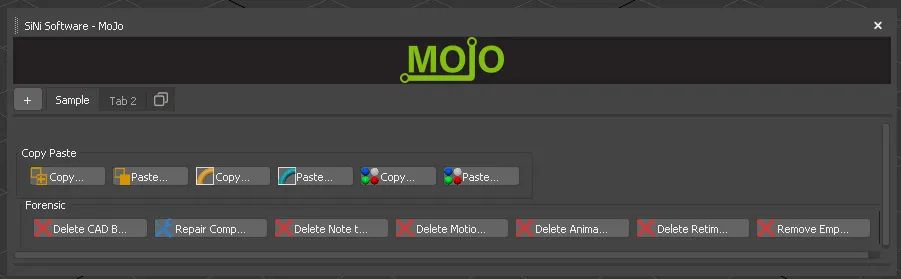

Horizontal MoJo Layout
Horizontal MoJo Layout
īģŋ

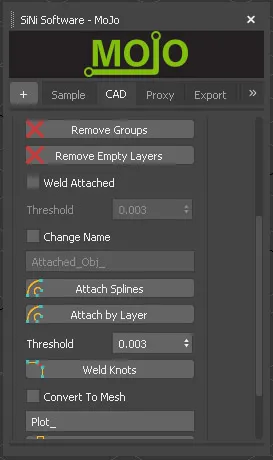

Vertical MoJo Layout
Vertical MoJo Layout
īģŋ

īģŋ

03. List of tools

Lists all available tools that can be added to MoJo.

Document image
īģŋ

Double-click to add to the Widget Builder on the right.

04. Widget Title

It's good practice to give each Widget group a title.

05. Widget Builder

The Widget Builder is where you assemble the groups of tools to compile into a widget.

LMB drag to reorder tools. Right-click over the Widget to delete a tool in the Widget Builder.

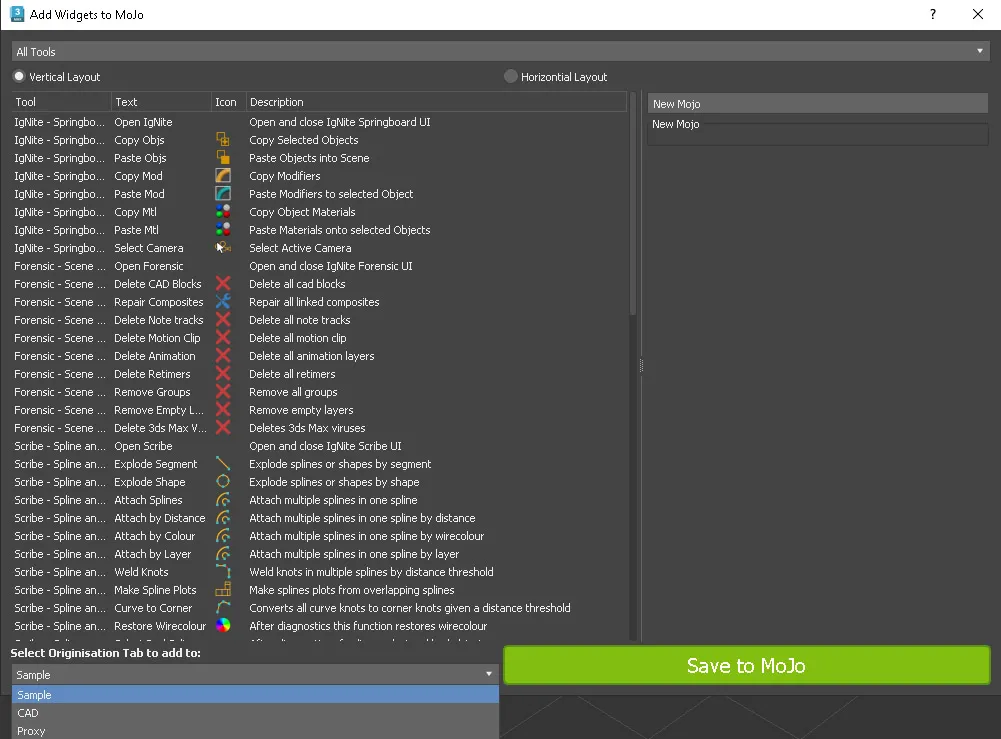

06. Select Organisation Tab

Document image
īģŋ

Select a Tab to save the Widget into. See Select Organisation Tabsīģŋ for more info.

07. Save the Widget to MoJo

Click to save the Widget group into MoJo (UI) - Toolīģŋ .

Make sure you've selected the correct Organisation Tab to save into.
